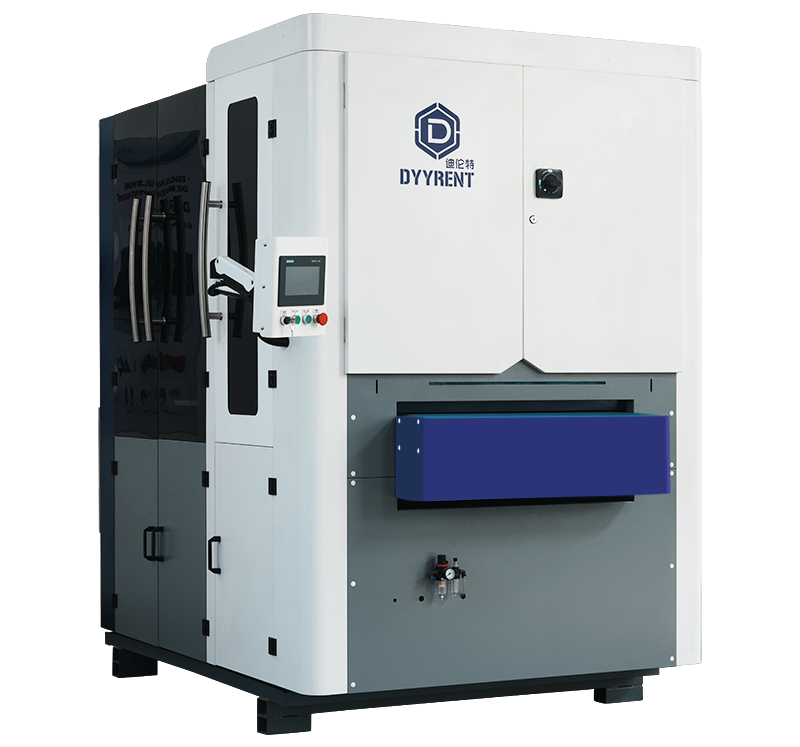

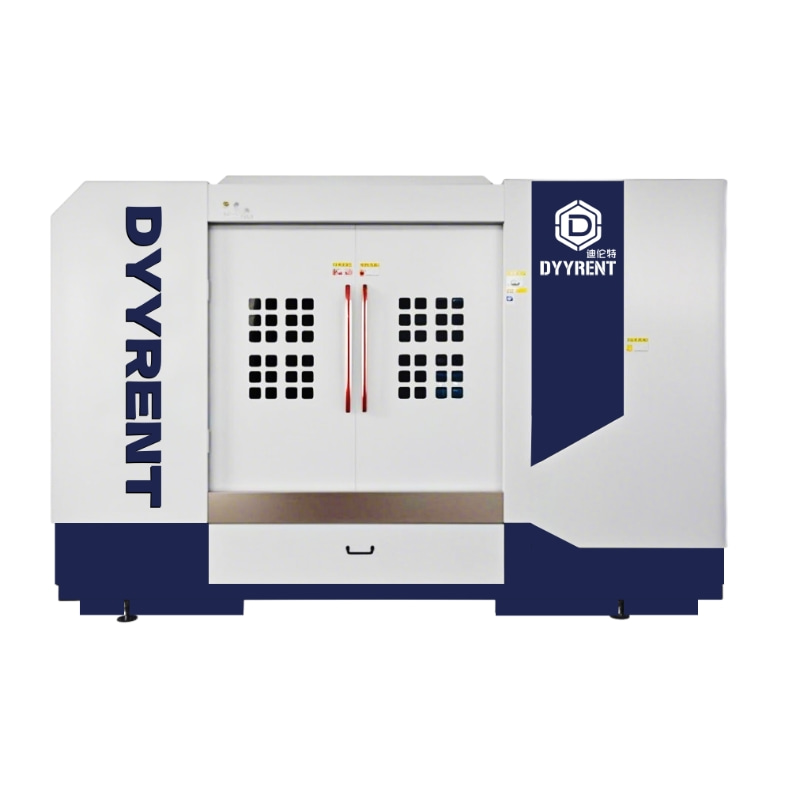

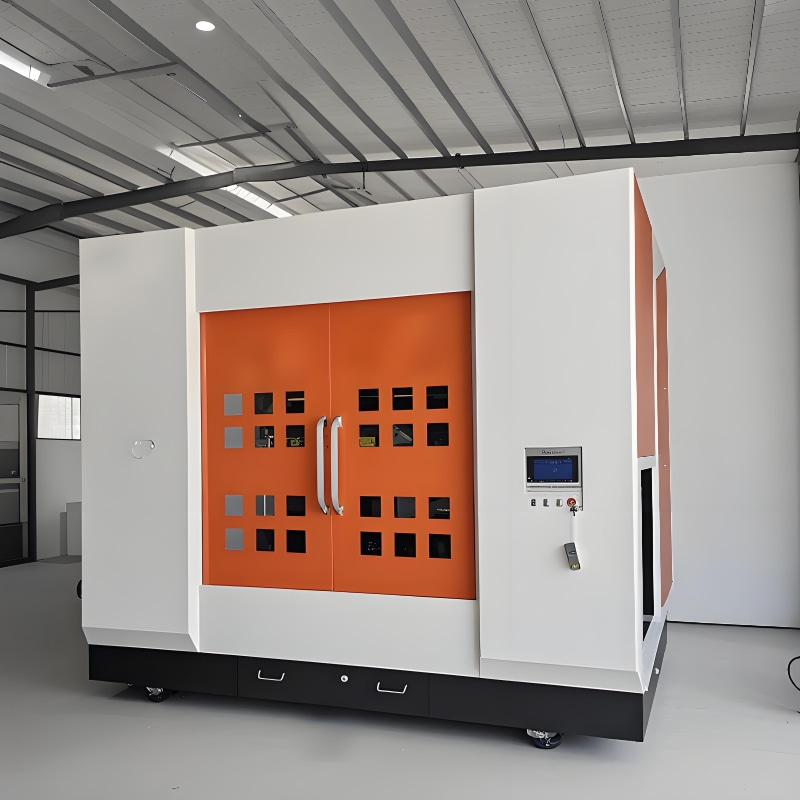

High-Speed Mirror Polishing Machine Series
Redefining Surface Finishing Excellence

Technical Advantages

Dual-Drive System: Synchronous belt + chain transmission for precise speed synchronization between main bowl and grinding troughs.
Modular Grinding Troughs: Adjustable grid sizes (85×50×200mm to 1320×270×250mm) accommodate parts from tiny electronics to large automotive components.

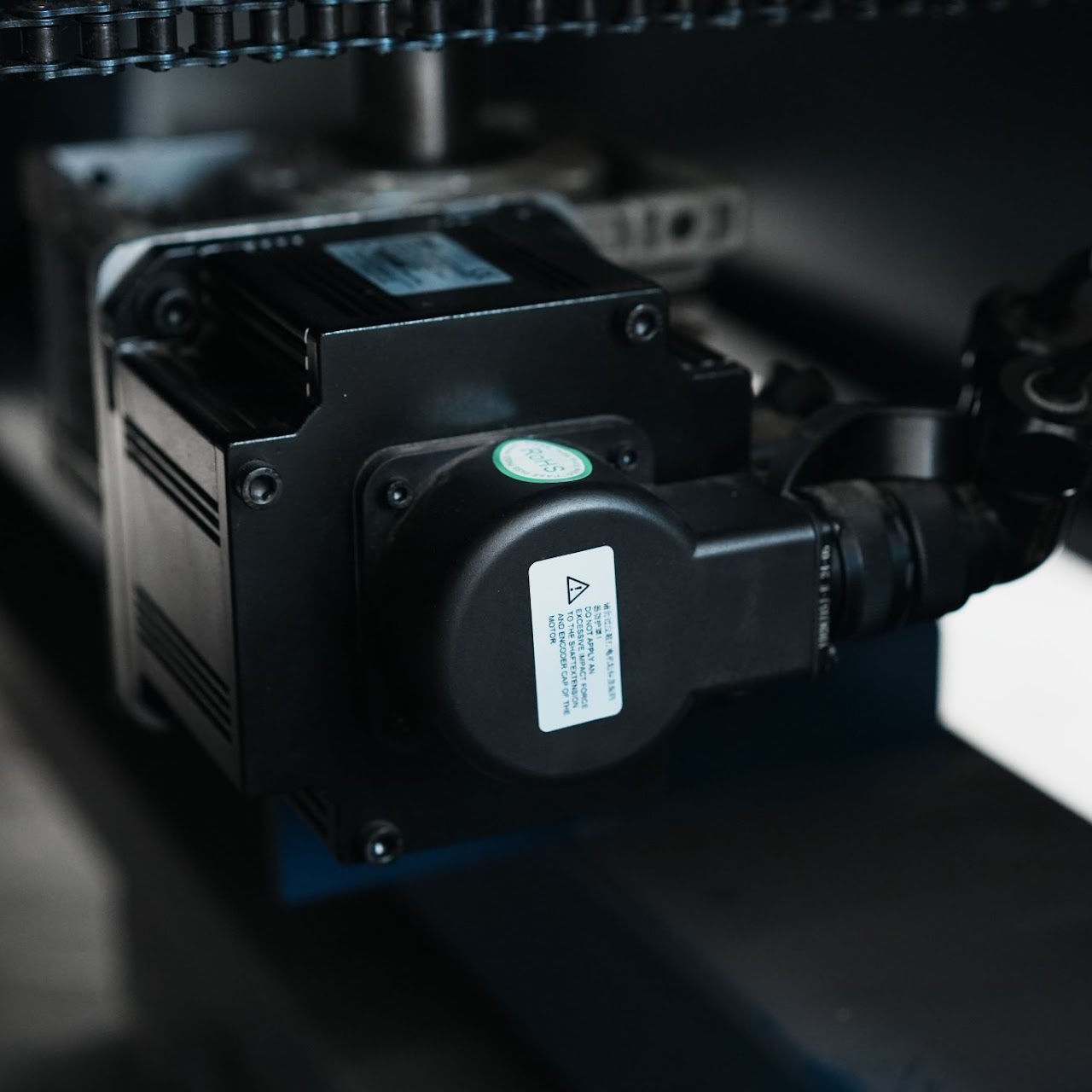

Energy-Efficient Motors: Low power consumption (1.5-37KW) with high torque output for cost-effective operation.
Easy Maintenance: Quick-release abrasive chambers and accessible lubrication points reduce downtime.

Model	HYT-4-48	HYT-192-LGJ	HYT-0-768-LGJ

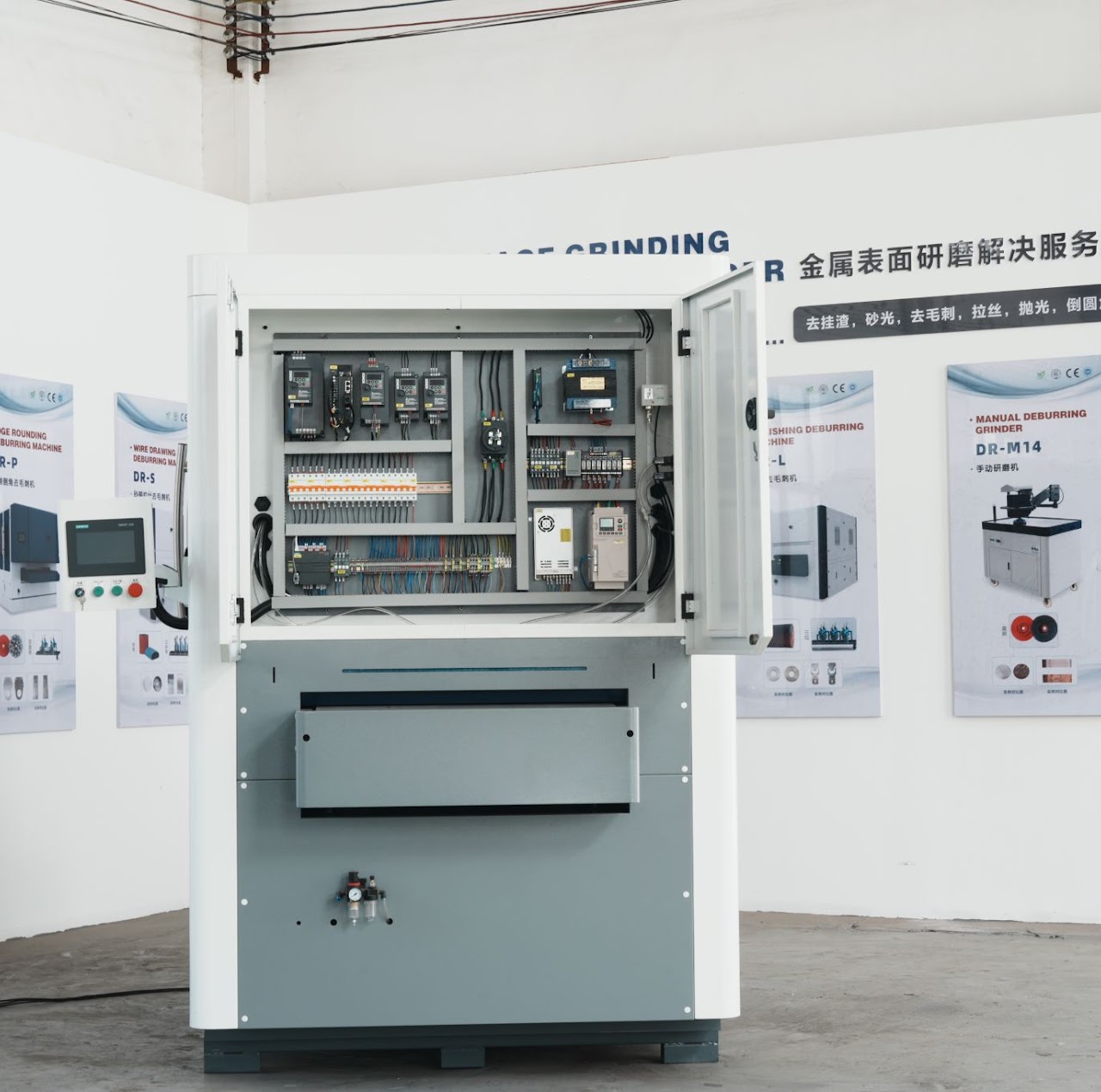

Control System	PLC, Inverter, Touchscreen (Optional)
Power (KW)	Main: 1.5 + Small: 0.37	Main: 5.5 + Small: 0.75	Main: 37 + Small: 3.7
Grinding Troughs	4-48 grids	4-192 grids	16-768 grids
Max. Bowl Speed	180 r/min	140 r/min	120 r/min
Dimensions (mm)	1350×1080×1380	2700×1450×1800	3320×2700×2400
Weight (Kg)	520	1700	6500
Voltage	AC 380V, 3-Phase 5-Wire

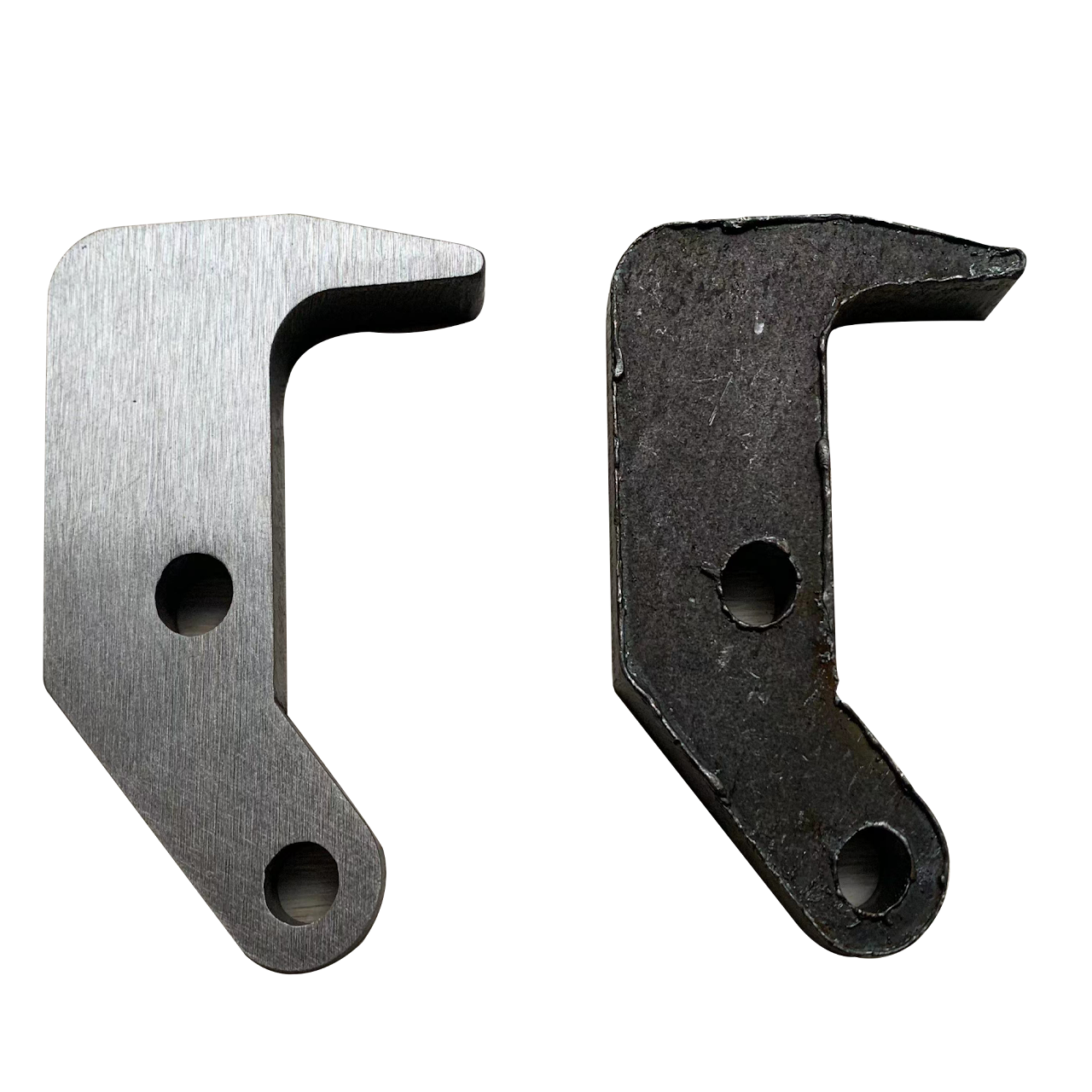

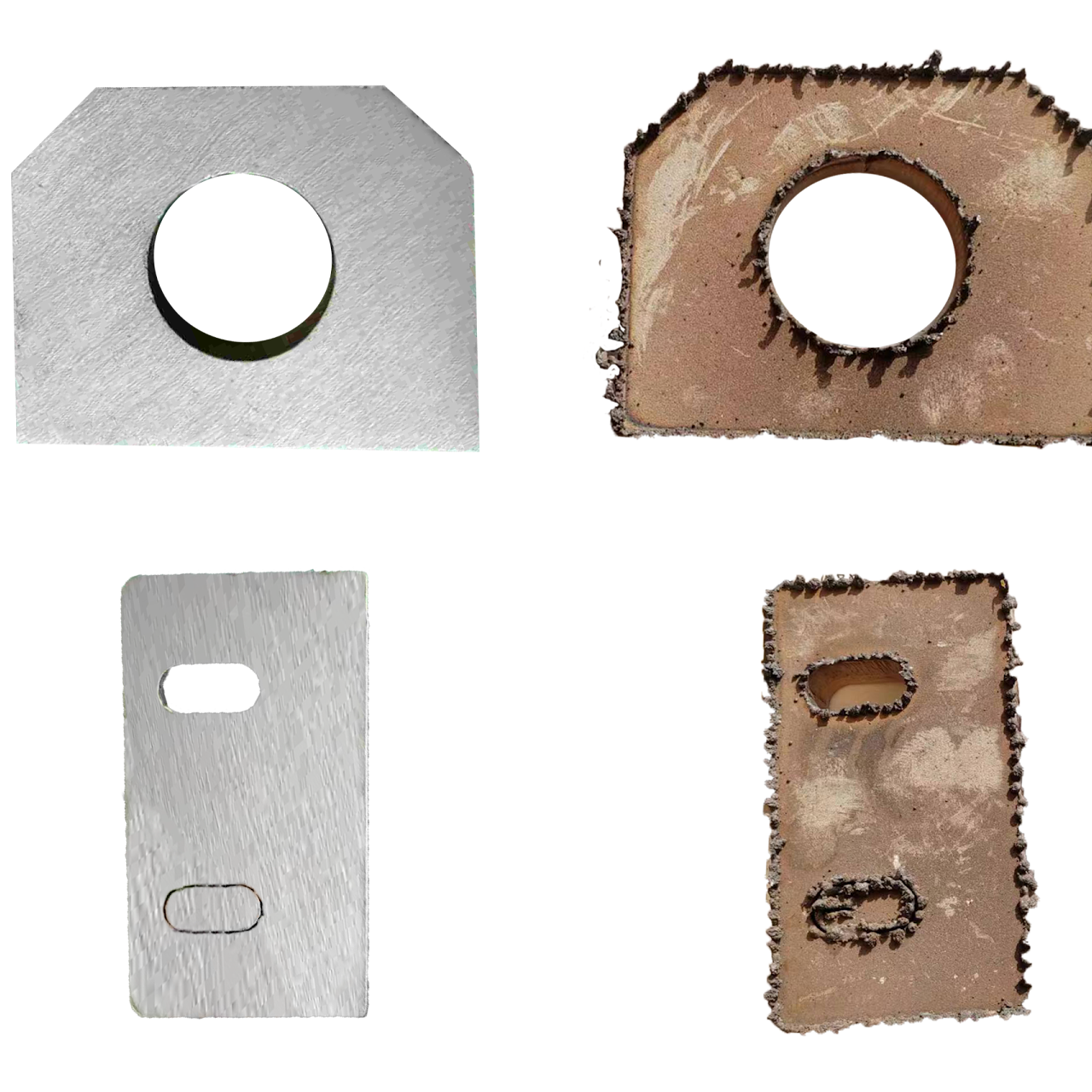

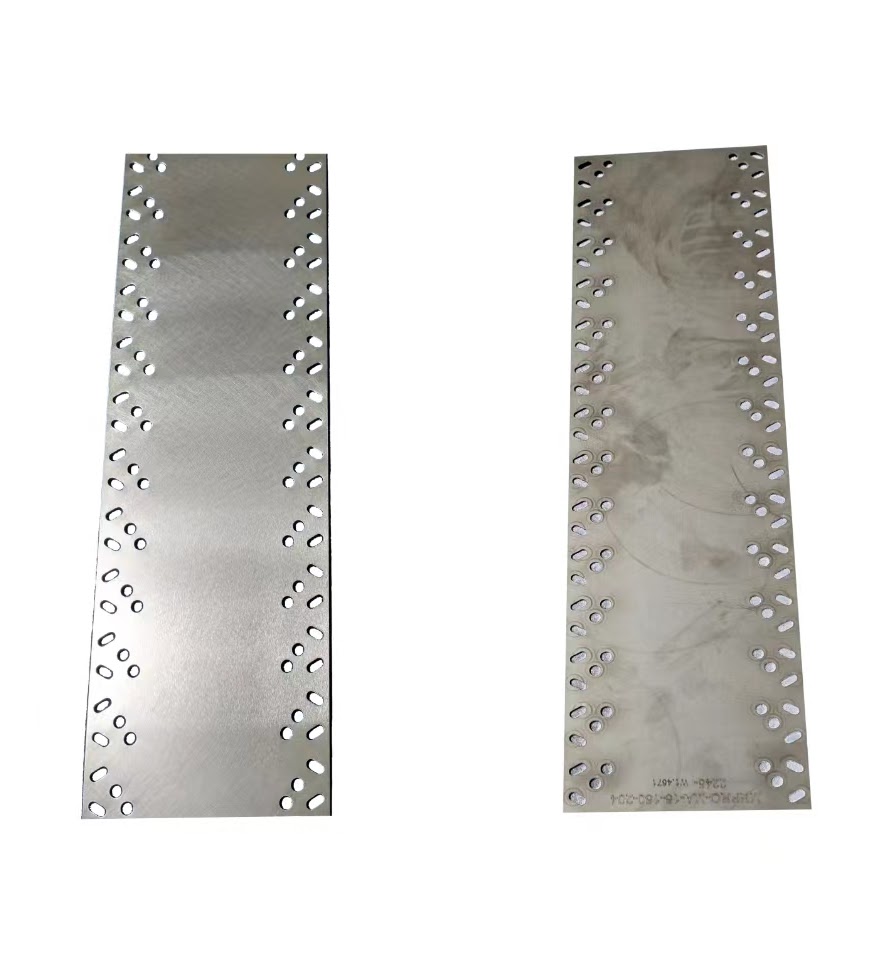

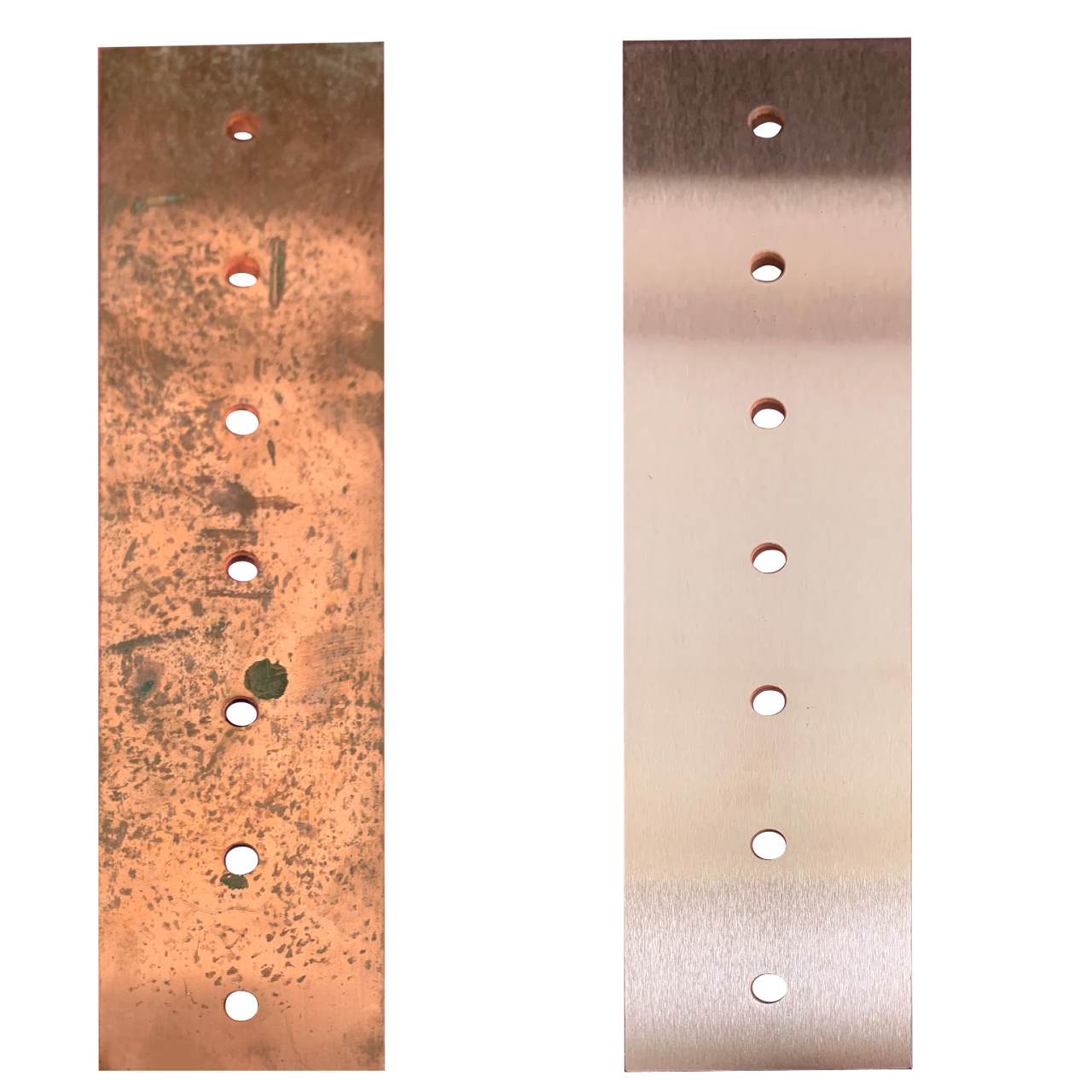

Achieves mirror-like finishes on stainless steel, copper, aluminum, zinc alloy, and hard plastics.
Ideal for complex geometries (e.g., aerospace turbine blades, intricate jewelry settings) where traditional methods fail.

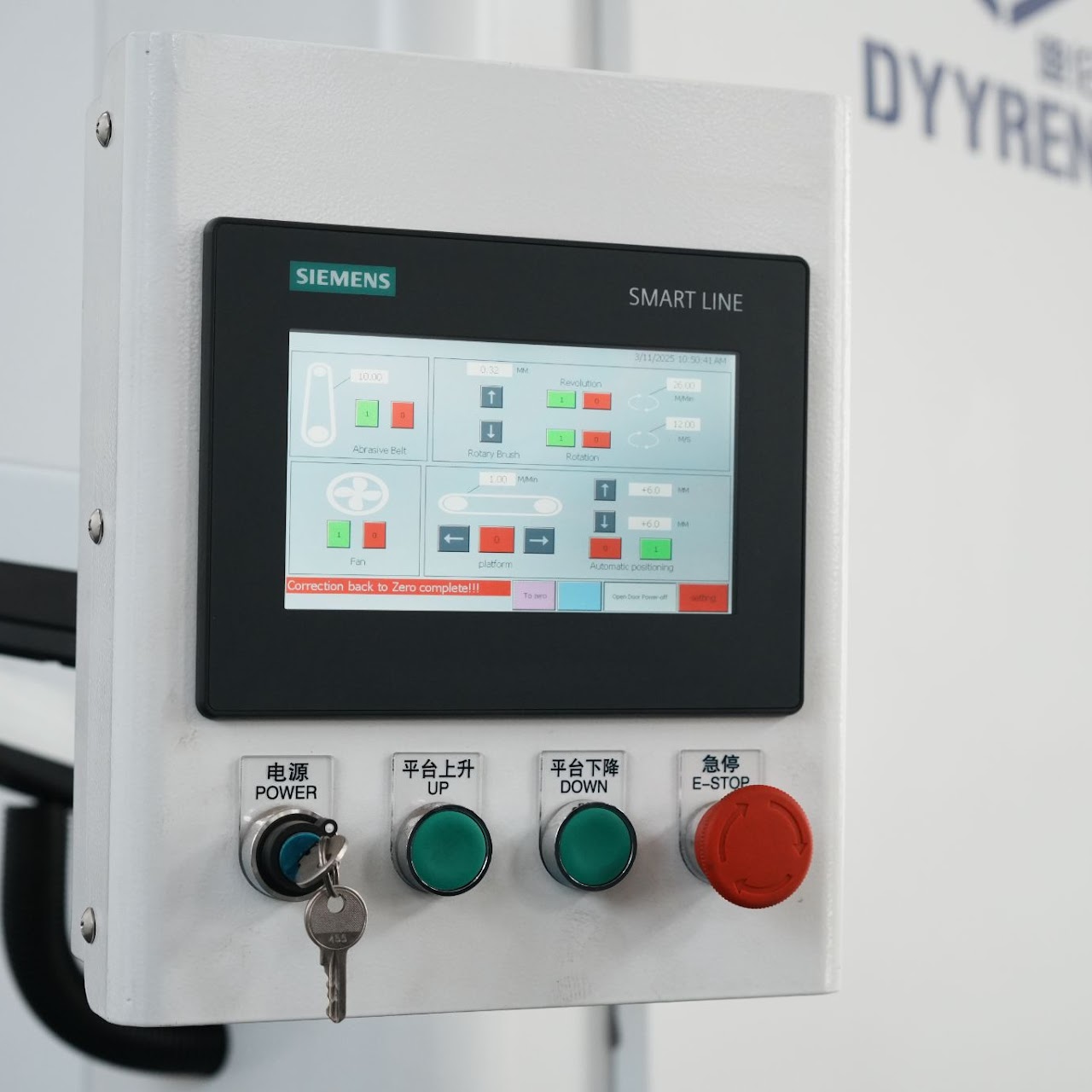

PLC-based digital control with intuitive touchscreen interface (optional).
Adjustable speeds:
- Low-speed rough grinding (30-35Hz) for rapid material removal.
- High-speed finishing (40-50Hz) for precision polishing without surface damage.
Reduces processing time by up to 50% compared to conventional machines.

Heavy-duty steel frame with anti-vibration padding for industrial-grade stability.
Safety features:
- Emergency stop button
- Interlocked protective covers (automatically power off when opened)
- Sealed, waterproof bearings for 24/7 operation
